Exposure Twin Light Harness Kit – HEX ezCAN / DENALI CANsmart – 1.3m

Connect a pair of Exposure auxiliary motorcycle lights to a single HEX ezCAN Gen II or DENALI CANsmart circuit with this complete twin-light wiring harness kit.

The kit includes two professionally finished 1.3 metre Exposure light harnesses and one 3-pin Y-splitter, providing a simple and tidy way of connecting two Exposure light pods to one controller output.

Ideal for installations where both Exposure lights are required to operate together from the same ezCAN or CANsmart circuit.

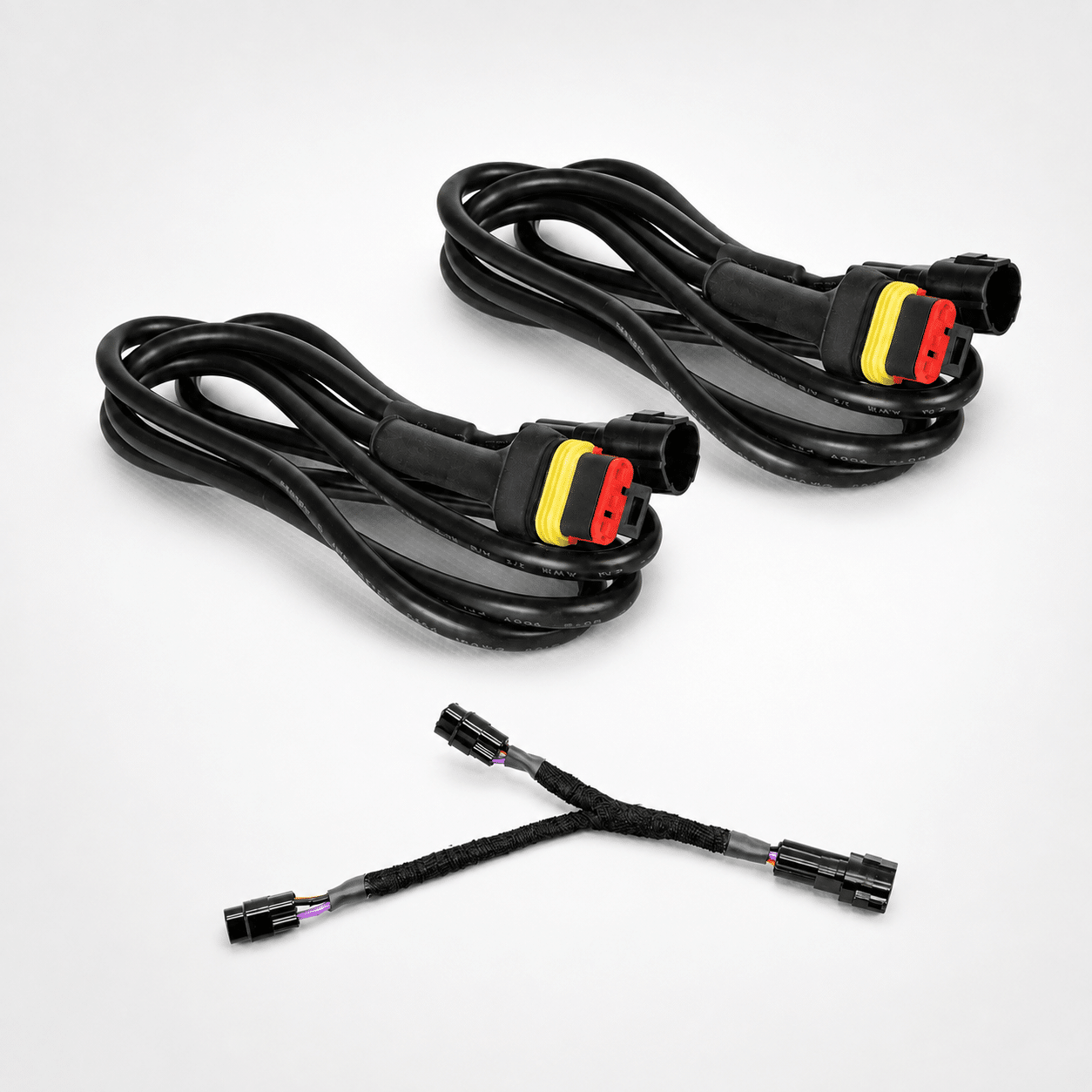

What’s Included?

• 2 x 1.3m Exposure Light Harnesses
• 1 x 3-pin Y-Splitter

Each Exposure harness features:

• 1.3 metre 3-core PVC jacketed cable
• Female 3-pin SuperSeal connector for the Exposure light
• Male 3-pin connector for connection to the Y-splitter
• Professionally heat-shrink finished cable ends
• High-quality construction for permanent motorcycle installation

How Does It Connect?

Each Exposure light connects to its own 1.3 metre harness.

The two harnesses then connect into the supplied 3-pin Y-splitter.

The Y-splitter connects to a compatible output on your:

HEX ezCAN Generation II

or

DENALI CANsmart

This gives each Exposure light approximately 1.3 metres of cable between the light pod and the Y-splitter, allowing the wiring to be routed neatly from lights mounted on either side of the motorcycle back towards the controller.

Connection Layout

Exposure Light – 1.3m Harness ↘

** Y-Splitter → HEX ezCAN / DENALI CANsmart**

Exposure Light – 1.3m Harness ↗

Designed for the White Light Circuit

This kit is particularly useful for connecting a pair of Exposure lights directly to the white auxiliary-light circuit on a compatible HEX ezCAN Gen II or DENALI CANsmart.

Both Exposure lights are connected to the same circuit and will therefore operate together and perform the same programmed lighting functions.

This is ideal when the two lights are being used as a conventional left and right auxiliary-light pair.

HEX ezCAN Important Configuration Note

When connecting conventional Exposure auxiliary lights to the white circuit of a HEX ezCAN Gen II, the white circuit should be configured within the HEX ezCAN software as the appropriate Auxiliary Light output.

It should not be configured as an ezBUS data circuit for this application.

Why Use the MotoWales Twin Harness Kit?

Rather than cutting cables, joining wires or manufacturing an installation loom, this kit provides the components required to create a clean twin-light installation.

The individual 1.3 metre harnesses also make installation and future maintenance considerably easier, allowing each Exposure light to be disconnected separately.

Ideal for:

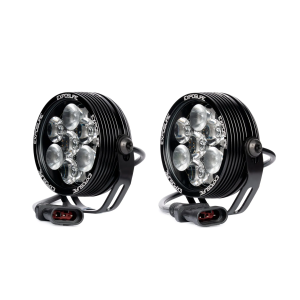

• Exposure auxiliary motorcycle lights
• Twin Exposure light installations
• HEX ezCAN Generation II
• DENALI CANsmart
• BMW and other CAN-bus motorcycle auxiliary-light installations
• Professional motorcycle lighting installations

Please Note

This kit connects two Exposure lights to one controller circuit.

Because both lights share the same HEX ezCAN or DENALI CANsmart output, both lights will operate together.

If you require the left and right lights to operate independently or to perform different functions, they will need to be connected and configured using separate suitable controller circuits.

Exposure light pods and HEX ezCAN / DENALI CANsmart controllers are not included.
